Data logger, manufacturing execution systems (MES) or recipe and batch management - HSDBASE connects a database to your S7 PLCs quick and uncomplicated. All settings are made in HSDBASE in a comfortable GUI. The integrated analyzer function makes HSDBASE perfect for diagnostics and troubleshooting.

HSDBASE supports

• CSV (Excel)
• Access
• MySQL
• MariaDB
• Microsoft SQL Server
• Oracle
• Email
• QDAS
• more systems on request

HSDBASE performs

• simultaneous connections to multiple PLCs
• data exchange in both directions
• no data collection limitation per PLC
• different acquisition modes (cycle, trigger, change, read and write, ring buffer)
• integrated analyzer function for cycle exact capturing
• in most cases , PLC-software remain untouched
• optimized communication driver for maximum data rates
• access via Siemens CP343/443 or PN-devices, IBH-Link, NETLinkPRO, PG/OP-interface of VIPA-PLCs
• TCP/IP interface for data exchange with other applications. For example with PHP for the display of real time values on the intranet

HSDBASE features

• no additional software or drivers required
• fully automatic creation of files/databases and tables
• live preview while editing
• comfortable editor with undo/redo function
• copy/paste-function for fast editing and data migration from other applications
• integrated help for fast introduction
• integrated language selection (German/English) - more languages on request

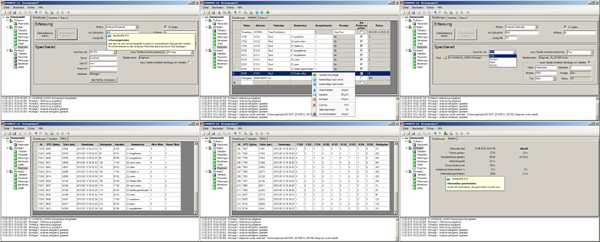

Screenshots
